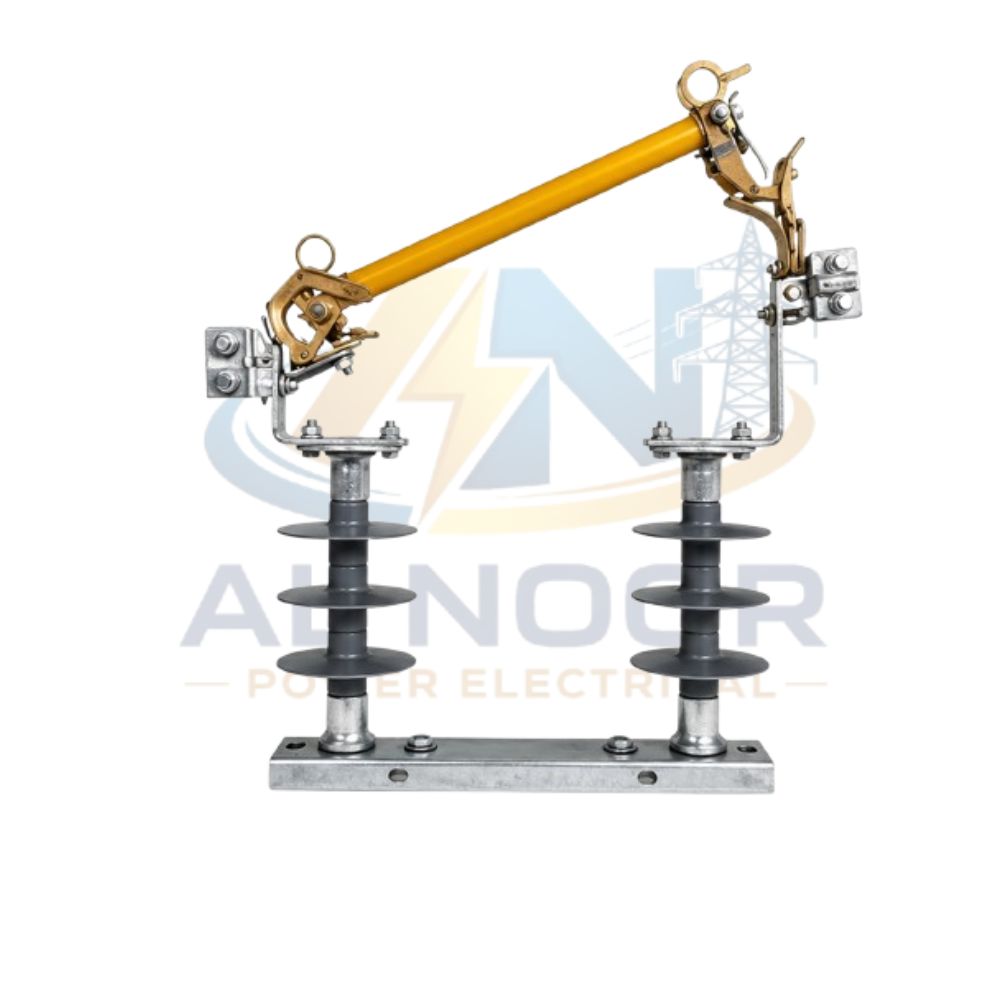

11 KV 200 AMP Polymer DO Fuse

Name: 11 KV 200 AMP Polymer DO Fuse
Brand: AL-Noor Power Electrical
Price: 2800.0 INR
Availability: InStock

Price 2800.0 INR/ Set

Get a Price/Quote

MOQ : 10 Sets

11 KV 200 AMP Polymer DO Fuse Specification

Product Type
Drop Out (DO) Fuse

Material
Epoxy Polymer Housing with Copper/Brass Contacts

Welding Standard
IS 2825

Capacity
200 AMP Kg

Application
Overhead Transmission and Distribution Protection

Galvanization Standard
Hot Dip Galvanized as per IS: 2629/BS729

Out Coating
Polymeric Coated

Standard
IS 9385/IEC 60282

Shape
Solid-core drop-out fuse cutout

Surface Treatment
Corrosion Resistant Coating

Height
600 mm (Fuse Length) Millimeter (mm)

Voltage
11 KV Ampere (amp)

Design
Outdoor Type, Weatherproof

Thickness
3 mm (Fuse Tube Wall) Millimeter (mm)

Color
Grey

Rated Frequency
50 Hz

Mechanical Endurance
Up to 100 operations

Breaking Capacity
8 kA

Corrosion Resistance
Excellent

Arcing Horn
Provided

Insulation Level
28 kV (Power Frequency Withstand)

Fuse Link Material
Silver/Copper

Creepage Distance
320 mm

Conductor Size Compatibility
Up to 80 sq.mm

Weight
Approx. 4.5 kg

Installation
Horizontal/Vertical

Mounting
Pole Mounted

Operating Temperature
-10C to +55C

11 KV 200 AMP Polymer DO Fuse Trade Information

Minimum Order Quantity
10 Sets

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Sets Per Week

Delivery Time
2-5 Days

Main Domestic Market
All India

About 11 KV 200 AMP Polymer DO Fuse

Discover the must-have 11 KV 200 AMP Polymer DO Fuse, available at an unbeatable price. Engineered with splendiferous quality, this fuse features lavish silver or copper fuse links and a phenomenal polymer housing to ensure reliable performance even under extreme conditions. Enjoy a spectacular 8 kA breaking capacity, superior corrosion resistance, and flexible mounting options-horizontal or vertical. Find industrial-grade weatherproof protection ideal for overhead transmission and distribution applications. Experience peace of mind with IS 9385/IEC 60282 standards compliance. This cylindrical marvel is what your electrical network has been missing.

Versatile Applications and Standout Features

The 11 KV 200 AMP Polymer DO Fuse is designed for outdoor protection of overhead transmission and distribution systems. Its splendid mechanical endurance, weatherproof build, and compatibility with conductors up to 80 sq.mm make it adaptable for varied installation scenarios. With a creepage distance of 320 mm and efficient arcing horn, it provides fault interruption effortlessly. Suitable for both urban and rural grids, it exemplifies reliability in adverse environments and high-load conditions, ensuring uninterrupted power safeguarding.

Certification, Export Potential & Supply Capabilities

Certified to IS 9385 and IEC 60282 standards, this fuse guarantees top-tier quality and safety. Packing & dispatch procedures conform to industry norms, facilitating seamless logistics from our FOB port in India to global markets. We estimate a substantial supply ability to meet export market demands promptly, offering careful packing for international shipments. With a robust distribution network and punctual delivery, this fuse is ready to power utilities and industrial sectors anywhere you require.

FAQ's of 11 KV 200 AMP Polymer DO Fuse:

Q: How does the 11 KV 200 AMP Polymer DO Fuse ensure safety and reliability?

A: This fuse complies with IS 9385/IEC 60282 standards, features superior insulation and breaking capacity, and includes corrosion-resistant components for safe, long-term operation even in harsh outdoor environments.

Q: What areas and applications is this DO Fuse most suitable for?

A: Primarily designed for overhead transmission and distribution line protection, it's ideal for utility grids and industrial networks, supporting both urban and rural energy distribution infrastructure.

Q: When should you consider replacing or operating this fuse?

A: You should operate or replace the fuse during routine maintenance or after detecting a fault interruption, as it boasts mechanical endurance for up to 100 operations, ensuring longevity and low maintenance frequency.

Q: Where can the 11 KV 200 AMP Polymer DO Fuse be installed?

A: With flexibility for horizontal or vertical installation, this fuse is intended for pole mounting in outdoor electrical networks, maximizing adaptability for various site requirements.

Q: What is the process for packing and dispatching this fuse for export?

A: Each unit is meticulously packed according to industry standards before dispatching from our FOB port in India, ensuring safe transit and integrity of the product for export markets.

Q: What are the benefits of the polymer coating and corrosion resistant treatment?

A: The polymeric coating and advanced corrosion-resistant surface treatment prolong the fuse's life, minimize maintenance, and enhance safe operation even in adverse weather or polluted environments.
